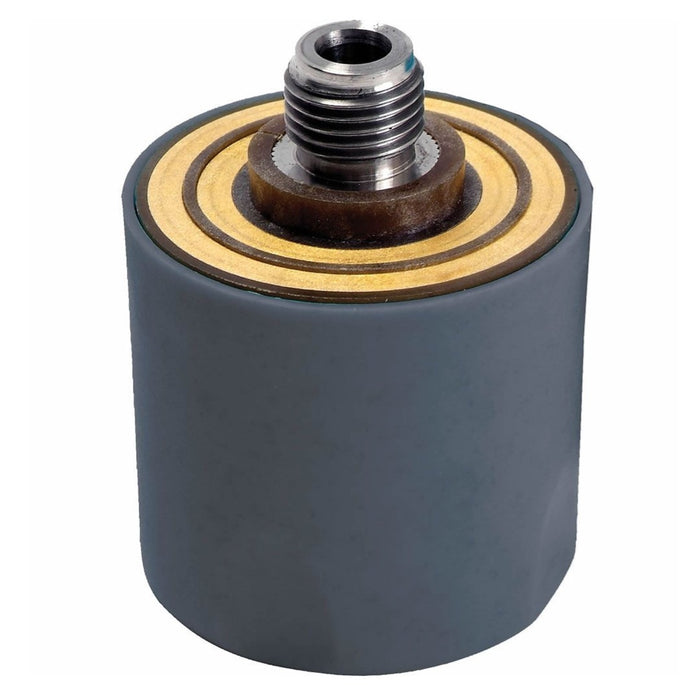

Druck PM620-165G Pressure Module (100bar/1500psi)

The Druck PM620 pressure modules represent the latest development in digital output sensor technology, incorporating a number of key innovations to allow pressure re-ranging of compatible equipment. A simple screw fit makes both the pressure and electrical connections without the need for tools, sealing tape, cables, or plugs, and digital characterization allows interchangeability without set-up or calibration.

The Druck PM620 pressure modules can be changed in a few seconds to re-range an instrument at a fraction of the cost of a new one. The Druck PM620 pressure modules can be used in conjunction with pneumatic or hydraulic Druck PV620 pressure stations and the Druck DPI620 multifunction calibrator to form an integrated pressure calibrator for test and calibration of pressure instruments, including transmitters, transducers, switches, gauges, indicators, and recorders. Alternatively, the Druck PM620 pressure modules can be combined with the pressure station by an MC620 module carrier, which adds a dual-channel pressure measurement capability that can be re-ranged in seconds. Pressure ranges are available up to 1000bar/15000psi.

Ordering Info

● PM620-07G (-1 to 2bar/-14.5 to 30psi)
● PM620-08G (-1 to 3.5bar/-14.5 to 50psi)
● PM620-10G (-1 to 7bar/-14.5 to 100psi)
● PM620-11G (-1 to 10bar/-14.5 to 150psi)
● PM620-13G (-1 to 20bar/-14.5 to 300psi)
● PM620-14G (0 to 35bar/0 to 500psi)
● PM620-16G (0 to 70bar/0 to 1000psi)
● PM620-165G (0 to 100bar/0 to 1500psi)
● PM620-17G (0 to 135bar/0 to 2000psi)
● PM620-18G (0 to 200bar/0 to 3000psi)
● PM620-22A (0 to 700bar/0 to 10000psi)
● PM620-23A (0 to 1000bar/0 to 15000psi)
