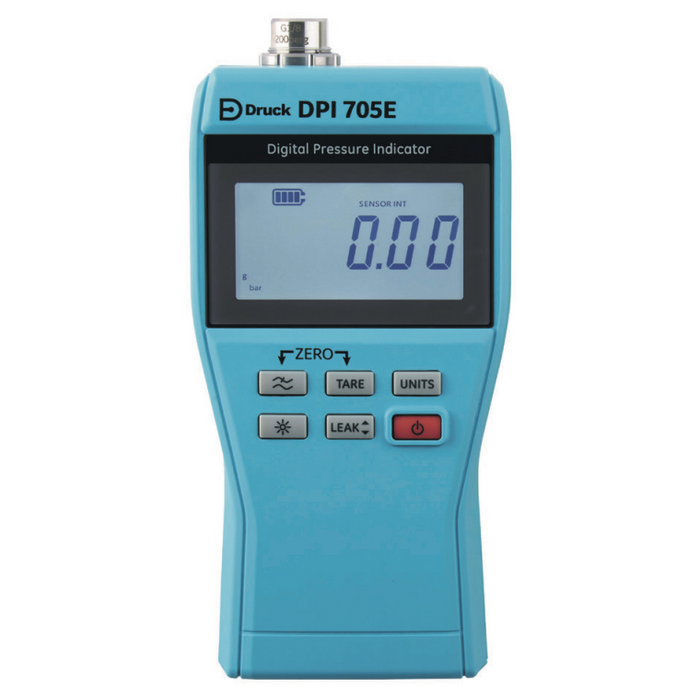

Druck DPI705E Handheld Pressure Indicator

The Druck DPI705E Series of handheld pressure and optional temperature indicators combines a tough and rugged design with accurate and reliable measurements. Compact and robust, the DPI705E Series is designed for single-handed operation and provides many essential features required for routine maintenance and system troubleshooting.

Features

● 41 pressure ranges from ±25 mbar to 1400 bar (±10 in H20 to 20000 psi/2.5 kPa to 140 MPa)
● Total 1 year uncertainty down to 0.025% full scale (FS) over the temperature range of -10°C to +50°C
● Integral calibration record with calibration due countdown display
● Rugged and handheld design with a backlit high-contrast display
● Leak test, tare, maximum/minimum, and filter functions
● Hazardous Area (Intrinsically Safe) version available
● Optional remote plug-and-play pressure (PM700E) and Resistance Temperature Detector (RTD-PROBE) sensors
● Compatible with pneumatic and hydraulic hand pumps
● Compatible with 4sight2 for automated calibration

Note: Please refer to the attached datasheet for detailed ordering information.

Druck DPI705E Series Datasheet

Druck DPI705E Series User Manual

Druck DPI705E Series User Guide

Accessories
