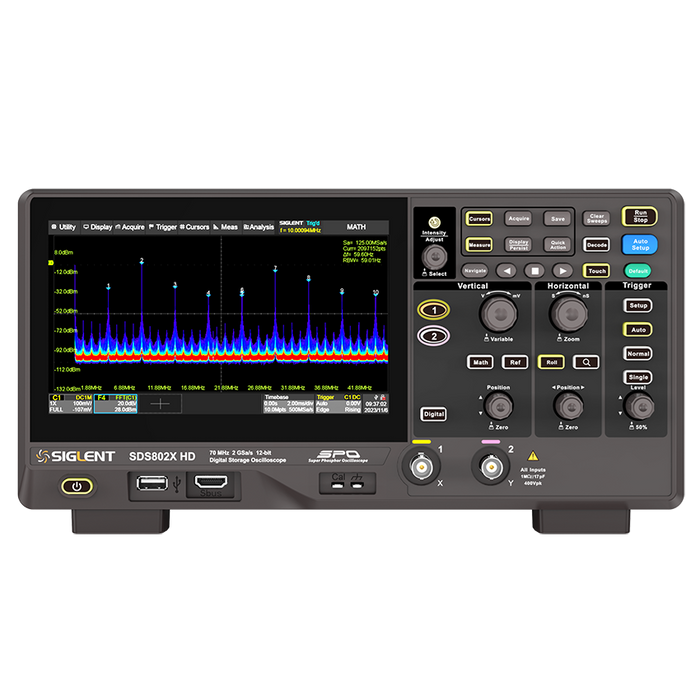

Siglent SDS812X HD Digital Storage Oscilloscope (100MHz)

The Siglent’s SDS800X HD series high-resolution digital storage oscilloscopes are based on 2GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise floor performance. They are available in bandwidths of 200MHz, 100MHz, and 70MHz, have a maximum record length of 100Mpts, and display 2/4 analog channels + 16 digital channels mixed signal analysis ability.

The SDS800X HD series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000wfm/s (normal mode, up to 500,000wfm/s in Sequence mode), 256-level intensity grading display function, plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, and Power Analysis allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25MHz arbitrary waveform generator, as well as serial decoding, are also features of the SDS800X HD.

Siglent SHS800X HD Series Datasheet

Siglent SHS800X HD Series User Manual
