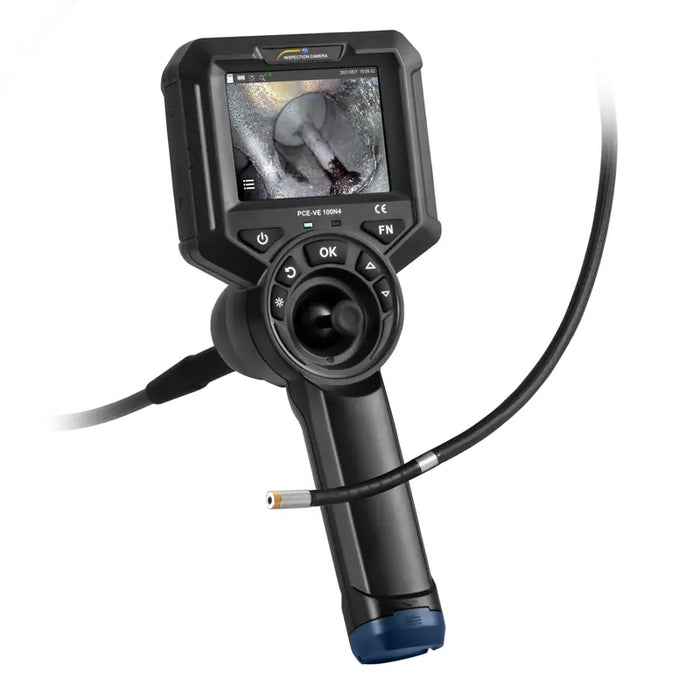

PCE-VE 100N4 Articulation Industrial Borescope

The PCE-VE 100N4 is a 4-way industrial borescope with a cable length of one meter and a camera head diameter of 6mm, which is the ideal tool for endoscopy. The LED illuminance on the camera head can be set in 5 steps up to 25,000lux. This ensures that the test item is adequately illuminated. With the mini-HDMI interface on the 4-way videoscope, the image can be transmitted to an external monitor or projector. This has the particular advantage that the 4-way videoscope can be used for presentations. Thus, the 4-way videoscope is used in car workshops, heating and air conditioning technology, vocational schools, universities, and other educational facilities.

Photos as well as videos can be recorded with the 4-way industrial borescope. The recordings are saved directly on the Micro SD card and can be viewed on the 4-way videoscope. It is also possible to transfer the recordings from the Micro SD card to a computer. This means that the recordings from the 4-way videoscope can be stored in expert reports, for example. The 3500mAh battery enables an operating time of more than 3 hours before it has to be recharged. To recharge the battery, the 4-way videoscope can be connected to any 5V USB interface.

Features

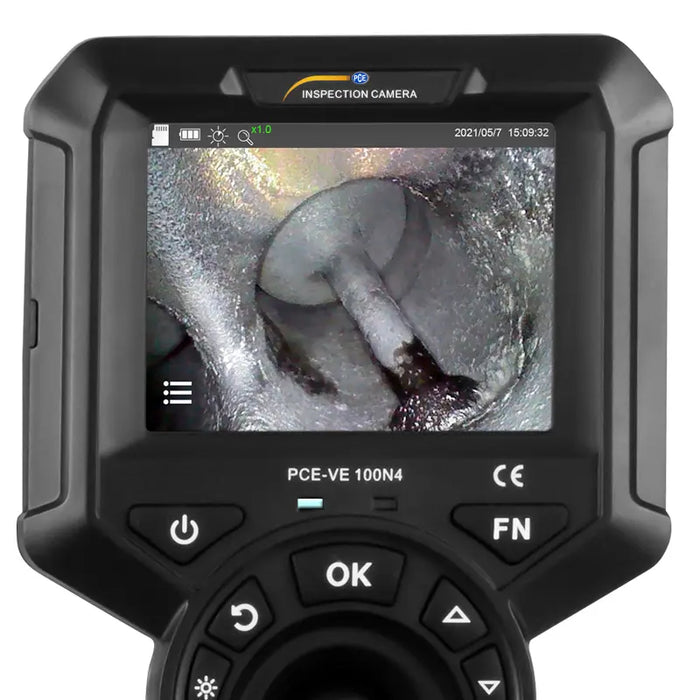

● 3.5" display

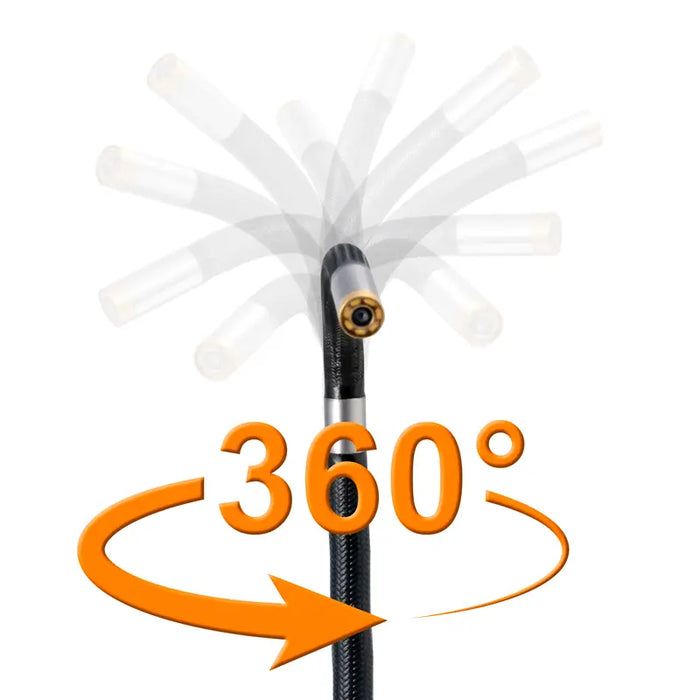

● 4-way camera head
● Operating time of more than 3 hours
● Mini-HDMI interface for image output
● Rechargeable via USB interface
● Braided tungsten tube with a length of 1m

PCE-VE 100N4 Datasheet

Accessories
