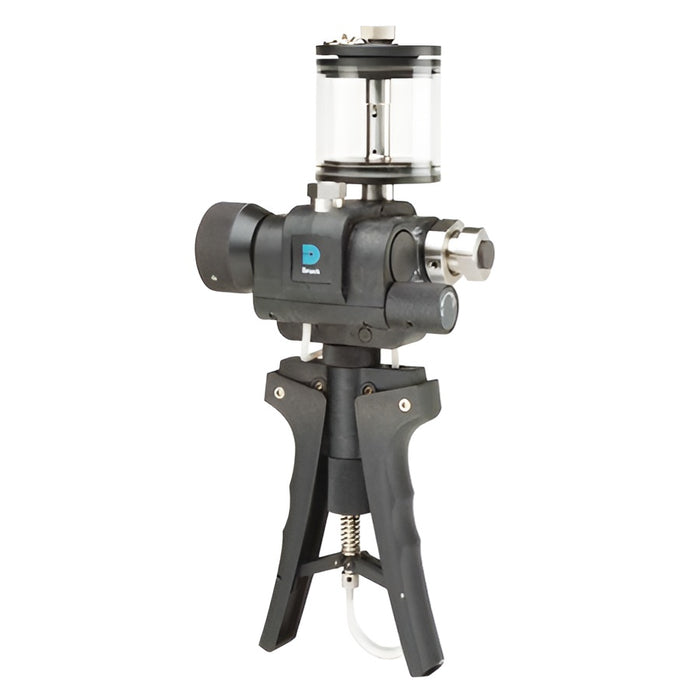

Druck PV411A-HA Hydraulic Hand Pump with Accessory Kit (10,000psi)

The PV411A is a high-quality, field-proven pressure and vacuum hand pump that provides functionality never seen before in a handheld pressure source. This remarkable product replaces four conventional hand pumps and offers the following additional features:

● Unique vacuum priming function removes trapped air during hydraulic operation

● High-pressure generation is accomplished with the volume adjuster, eliminating the physical effort associated with conventional hand pumps

● The pressure/vacuum selector valve also provides exceptional fine control pressure relief in both pneumatic and hydraulic modes

● Tamper-proof adjustable overpressure protection valve, which can be set to relieve pressures from 300 to 10,000psi

● Removable hydraulic reservoir, which can be disconnected from the pump without draining the fluid

● Reservoir safety feature with spring-loaded top cover vents if inadvertently pressurized above 8 psi

● The hydraulic mode is designed to operate with distilled water and/or high viscosity mineral oil

● A highly sensitive volume adjuster is used for hydraulic, pneumatic, vacuum, and low-pressure operation

● Built-in stroke adjuster controls the pressure/vacuum generated per stroke

● 240° swivel head for optimum viewing of reference indicators

● Internal moving parts are PTFE anodized for reduced friction and wear

● Ergonomic, rugged, and lightweight design with a comfortable hand grip

PV411A-HA Kit Includes:

● 2 pieces. 1/4 in NPT male adapters
● 1 piece 1/4 in NPT female adapter
● 1 piece 1/8 in NPT male adapter
● 1 piece 1/8 in NPT female adapter
● 1 piece 1/4 in male to 1/8 in female adapter and
● Heavy-duty transport case with closed foam insert, 10,000psi (689 bar) high-pressure hose assembly, 3 ft length
